Oilseeds Crushing Machine

Oilseeds Crushing Machine


Oilseeds crushing machine is for crushing large oilseeds like soybean, peanut, palm kernel, copra, etc., and pre-pressed oil cakes into small sizes with uniformity and few powders. The crushing process of oilseeds is vital for the improvement of flake quality and processing capacity of the flaking machine, thus oilseed crusher is the key equipment for the oil seeds preprocessing workshop.


  • Easy to operate and maintain conveniently.
  • Energy saving and high efficiency.
  • Stable performance and reasonable structure.

Types of Oilseed Crushing Machine and Applications

Toothed Roll Crusher

Two rolls are padded with a polygonal sawtooth to crush oilseeds by impacting and cutting. This oilseeds crusher is fit for oil cakes and large oilseeds.

double toothed roll crushing machine for oilseeds preprocessing

Glossy Roll Crusher

There are two types of glossy roll crusher: roll crusher and double-roll crusher. Two rolls move towards each other, and oil material is squeezed by friction between the rolls. A glossy roll crushing machine is suitable for small and medium-sized oilseeds with low moisture, such as soybean, peanut kernels, oil tea seeds, etc.

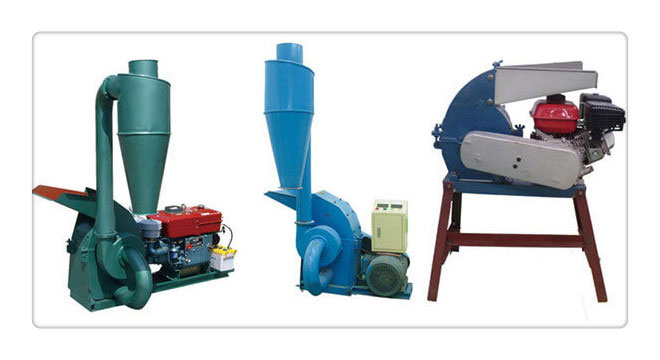

Oilseeds Hammer Mill

There are outward hammers on the drum, and when the drum is rotating at a high speed, the cake is crushed by the strong impacts of the hammers. The hammer mill has high crushing efficiency but can generate many powders and makes a big noise when working.

oilseeds hammer mill for crushing

Factors Affecting the Crushing Effect of Oil Seeds

  1. Properties of oilseed, like moisture content, temperature, and miscellaneous conditions.
  2. Working conditions of equipment like speed, gap, material feeding volume.
  3. Maintenance of equipment, like sealing of baffles on both sides of tooth roll, wear of tooth roll.
oilseeds crushing machine in oil production factory

Crushing Requirements of Different Oil Seeds

  1. The crushed materials are uniform in size and the granular size should meet requirements.
  2. The fewer powder the better the crushing result.
  3. The crushed material cannot be squeezed out of oil when crushing and can not form lumps.
oilseeds and oilcake for crusher
Oilseed Raw material

Water content(%)

Crushing degree(petal) powder
Through Sieve(mesh/cm) No more than(%)
soybean 10-15 4-8 7.87 10
peanut 7-12 6-8 7.87 5
Pre-pressed cake 8-11 maximum angle line 6-10(mm) __ 8
